Thulium fiber laser technology explained

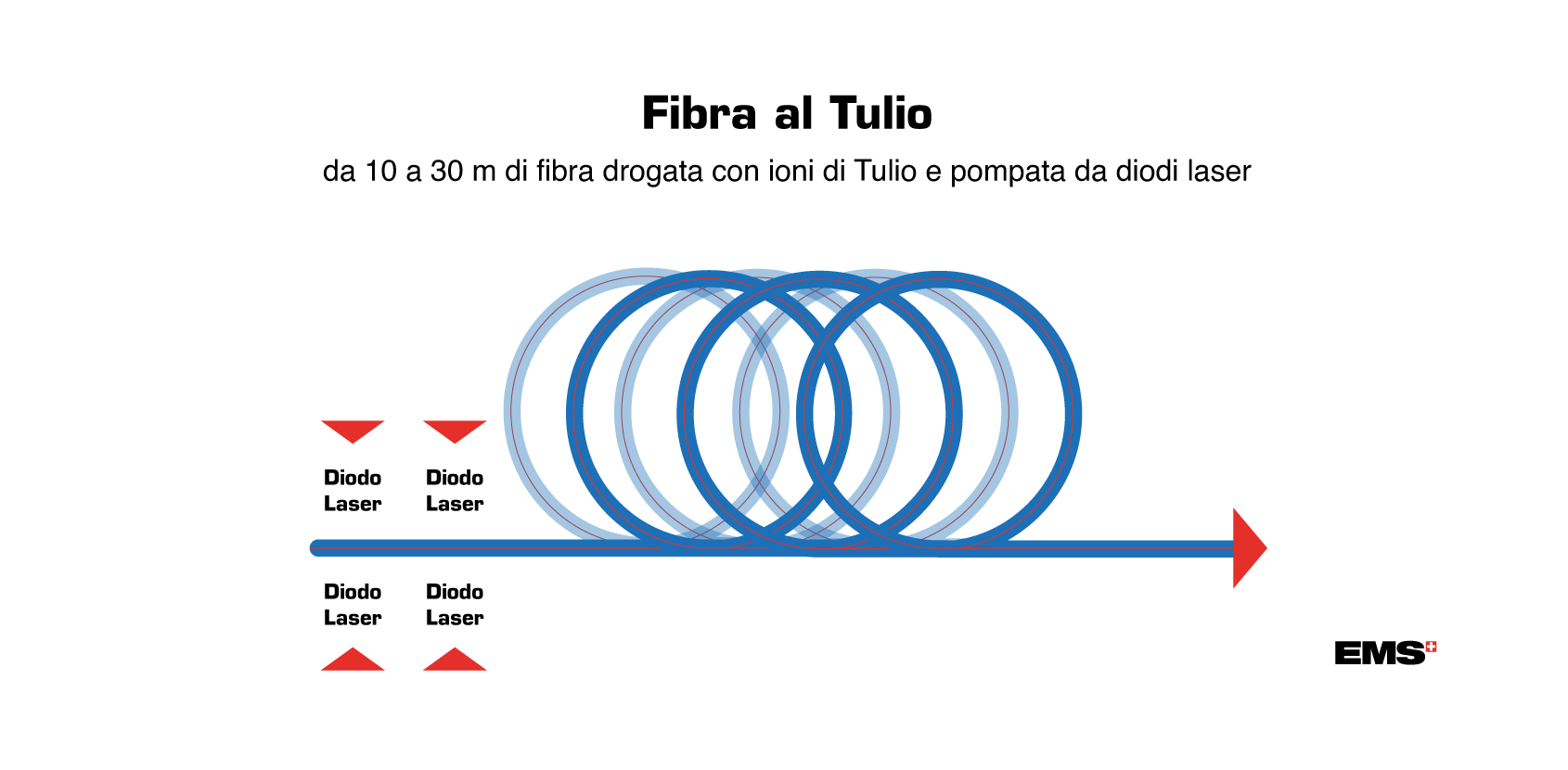

Thulium fiber laser (TFL) uses long, thin and thulium-doped silica fiber as the active laser medium. Multiple diode lasers are pumping energy through the fiber and excite the thulium ions. Photons are emitted at 1940 nm wavelength and directed at the operational field via an outgoing laser fiber.


There are two operating modes to choose from - the continuous and pulsed mode. Furthermore, TFL can operate within different energy, frequency and pulse shape settings. A highly efficient pumping mechanism allows obtaining high powers while generating small amounts of heat. Consequently, there is a significantly smaller cooling apparatus in the machine compared to other laser systems, reducing the overall weight of a TFL system. Thanks to the thin gain medium and more uniform spatial profile, smaller surgical fibers can be employed.

tm fiber image



Key clinical applications of TFL technology

Stone management

One of the main applications of laser technology (including Ho:YAG and TFL) is flexible ureteroscopy, used for ureteric and kidney stone management. This both diagnostic and therapeutic procedure allows for minimally invasive stone management without breaking the skin barrier.

Soft Tissue Treatment

The cutting-edge thulium fiber laser technology allows for conducting procedures diagnosing and treating soft tissue conditions, including the management of benign prostate hyperplasia (BPH).

Immagine
laser for bph

BPH treatment

Laser treatment options for BPH include vaporization, endoscopic enucleation (EEP), resection and ablation. In a majority of cases, EEP is the favoured method. Even though various lasers have been tested for treating EEP, the significant efficacy of the holmium lasers prompted holmium laser enucleation (HoLEP) to be the preferred choice. It allows removing a large amount of tissue in prostates of all sizes.

However, the recent addition of the thulium fiber laser to the urological arsenal might shift the paradigm. Given that TFL has identical average and peak powers of 100W, the laser does not burst tissues, providing clean and precise cutting.

What are the differences between Ho:YAG and Tm-Fiber technologies?

“Finer and faster”

Holmium:YAG laser has been used in urology for more than two decades (learn more about Ho:YAG laser here). Various key advantages over other existing lithotripsy techniques have established this method as a principal laser lithotripter [1, 2]. However, recent technological advances have resulted in the advent of new promising technology - the thulium fiber laser. According to previous studies, thulium fiber laser has the following advantages over Ho:YAG laser regarding laser lithotripsy [1,2]:



dust

Highly effective fragmentation and dusting

Although the holmium:YAG (Ho:YAG) laser lithotripter can operate at high pulse energies, the efficient operation during lithotripsy is limited to low pulse rates (∼10 Hz). Conversely, the thulium fiber laser is limited to low pulse energies but operates efficiently at high pulse rates (up to 1000 Hz). The higher pulse rate significantly improves dusting - a higher quantity of dust and a smaller volume of particles [1,2].

safe

Increased safety profile

La lunghezza d’onda del TFL (λ = 1908 nm) è abbinata a un maggiore coefficiente di assorbimento dell’alta temperatura da parte dell’acqua nei tessuti, rispetto alla lunghezza d’onda del laser Ho:YAG (λ = 2120 nm).  Di conseguenza si può ottenere una migliore ablazione del calcolo [2]. Inoltre i tessuti più profondi e la profondità di penetrazione dell’acqua sono un vantaggio per la sicurezza del TFL [1].





improved handling icon



Improved handling due to smaller fibers and better operability

Il fascio laser in uscita dal connettore chirurgico in fibra è circa 16 volte più sottile, con una conseguente diminuzione del diametro della fibra da 200 µm a 50 µm. È pertanto possibile aumentare l’energia erogata dal laser, generando una luce laser più focalizzata: 70 µm nel TFL rispetto ai 300 µm del laser Ho:YAG. La flessibilità delle fibre più sottili agevola notevolmente l’impiego di un minuscolo ureteroscopio in zone anatomiche difficili da raggiungere [1, 2]. Inoltre le fibre del TFL sono più resistenti alla rottura e meno suscettibili alla degradazione da bruciatura, assicurando quindi una maggiore durata e minori costi d’impiego.

Il sistema TFL si presenta come uno strumento più piccolo e leggero, generalmente più silenzioso e impiega una presa di corrente standard. Inoltre non necessita di raffreddamento ad acqua né di allineare la lampada e lo specchio laser prima dell’uso. In sala operatoria tali caratteristiche fanno risparmiare spazio prezioso e costi di installazione. Consentono inoltre un utilizzo immediato, se si decide sul momento di intervenire con il laser.





eye

Better visibility with less retropulsion

There is a notable reduction in retropulsion when compared with the Ho:YAG laser. In addition, the smaller fiber enables increased irrigation through the minute working channel within the instrument. This leads to improved visibility that can provide greater safety of the procedure.

Last but not least: super pulse creation

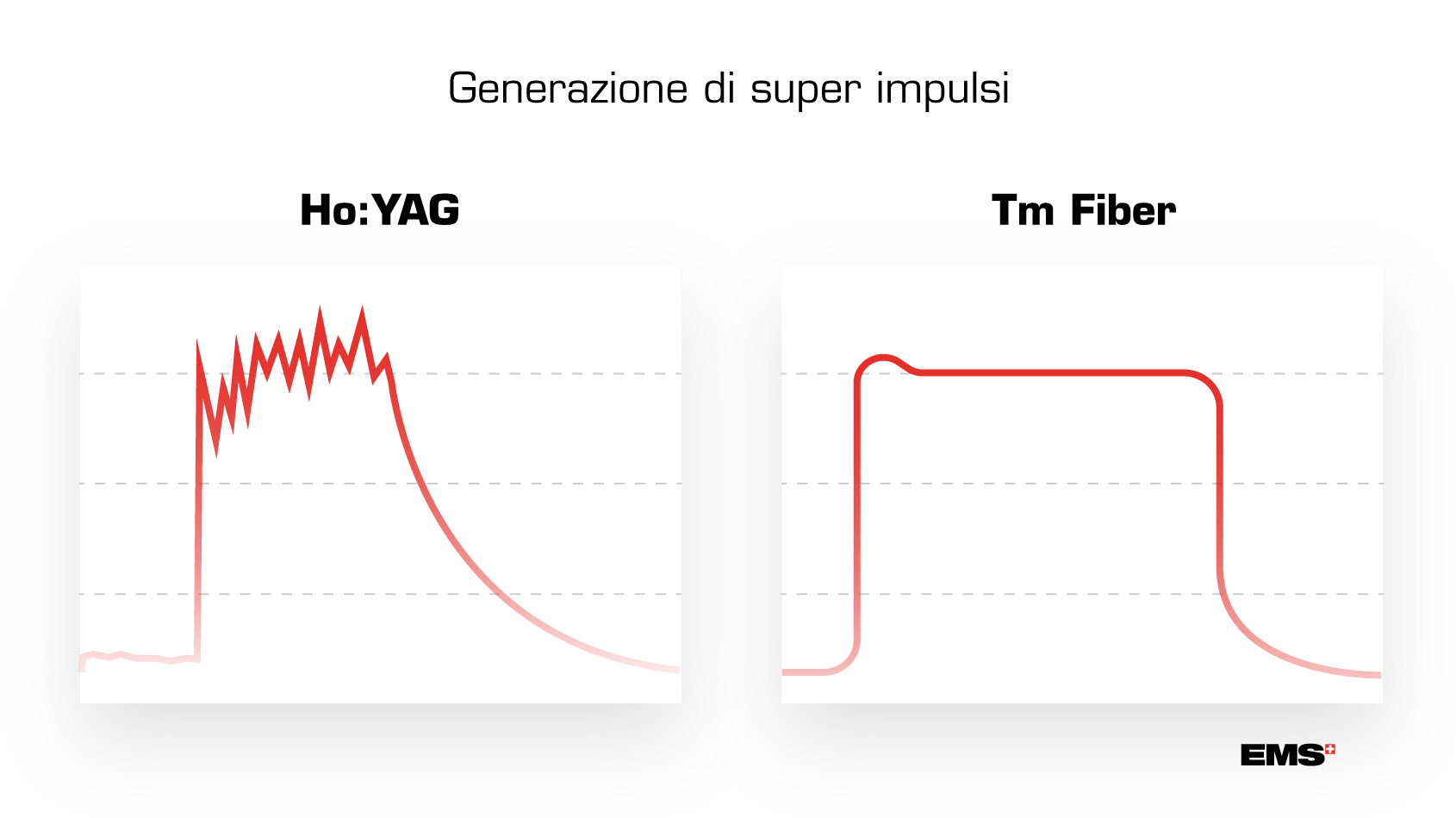

La fibra al Tulio di questo laser permette di aumentare la durata dell’impulso fino a 12 ms. Gli impulsi sono regolari, per cui la loro potenza di picco è costante: si creano così dei super impulsi. Questo effetto è stabile nel tempo, rendendo affidabile la potenza in uscita. Al contrario, gli impulsi generati dal laser Ho:YAG non sono uguali tra loro.

Discover EMS' new solution for the treatment of BPH: LaserClast® Thulium Power

Reference

  1. Traxer O, Keller EX. Thulium fiber laser: the new player for kidney stone treatment? A comparison with Holmium:YAG laser. World J Urol. 2020 Aug;38(8):1883-1894. doi: 10.1007/s00345-019-02654-5. Epub 2019 Feb 6. PMID: 30729311; PMCID: PMC7363731
  2. Blackmon RL, Irby PB, Fried NM. Comparison of holmium:YAG and thulium fiber laser lithotripsy: ablation thresholds, ablation rates, and retropulsion effects. J Biomed Opt. 2011 Jul;16(7):071403. doi: 10.1117/1.3564884. PMID: 21806249
  3. Kronenberg P, Traxer O. The laser of the future: reality and expectations about the new thulium fiber laser-a systematic review. Transl Androl Urol. 2019 Sep;8(Suppl 4):S398-S417. doi: 10.21037/tau.2019.08.01. PMID: 31656746; PMCID: PMC6790412.
  4. Panthier, Frédéric et al. “Comparison of the ablation rates, fissures and fragments produced with 150 µm and 272 µm laser fibers with superpulsed thulium fiber laser: an in vitro study.” World journal of urology vol. 39,6 (2021): 1683-1691. doi:10.1007/s00345-020-03186-z
  5. Keller, Etienne Xavier et al. “Thulium fiber laser: ready to dust all urinary stone composition types?.” World journal of urologyvol. 39,6 (2021): 1693-1698. doi:10.1007/s00345-020-03217-9
  6. Andreeva, Viktoria et al. “Preclinical comparison of superpulse thulium fiber laser and a holmium:YAG laser for lithotripsy.” World journal of urology vol. 38,2 (2020): 497-503. doi:10.1007/s00345-019-02785-9
  7. Kronenberg, Peter et al. “Outcomes of thulium fibre laser for treatment of urinary tract stones: results of a systematic review.” Current opinion in urology vol. 31,2 (2021): 80-86. doi:10.1097/MOU.0000000000000853
  8. Khusid JA, Khargi R, Seiden B, Sadiq AS, Atallah WM, Gupta M. Thulium fiber laser utilization in urological surgery: A narrative review. Investig Clin Urol. 2021;62(2):136-147. doi:10.4111/icu.20200467
