ho:yag

The Holmium:YAG laser has become a multi-purpose tool in endoscopic urology.

Introduction

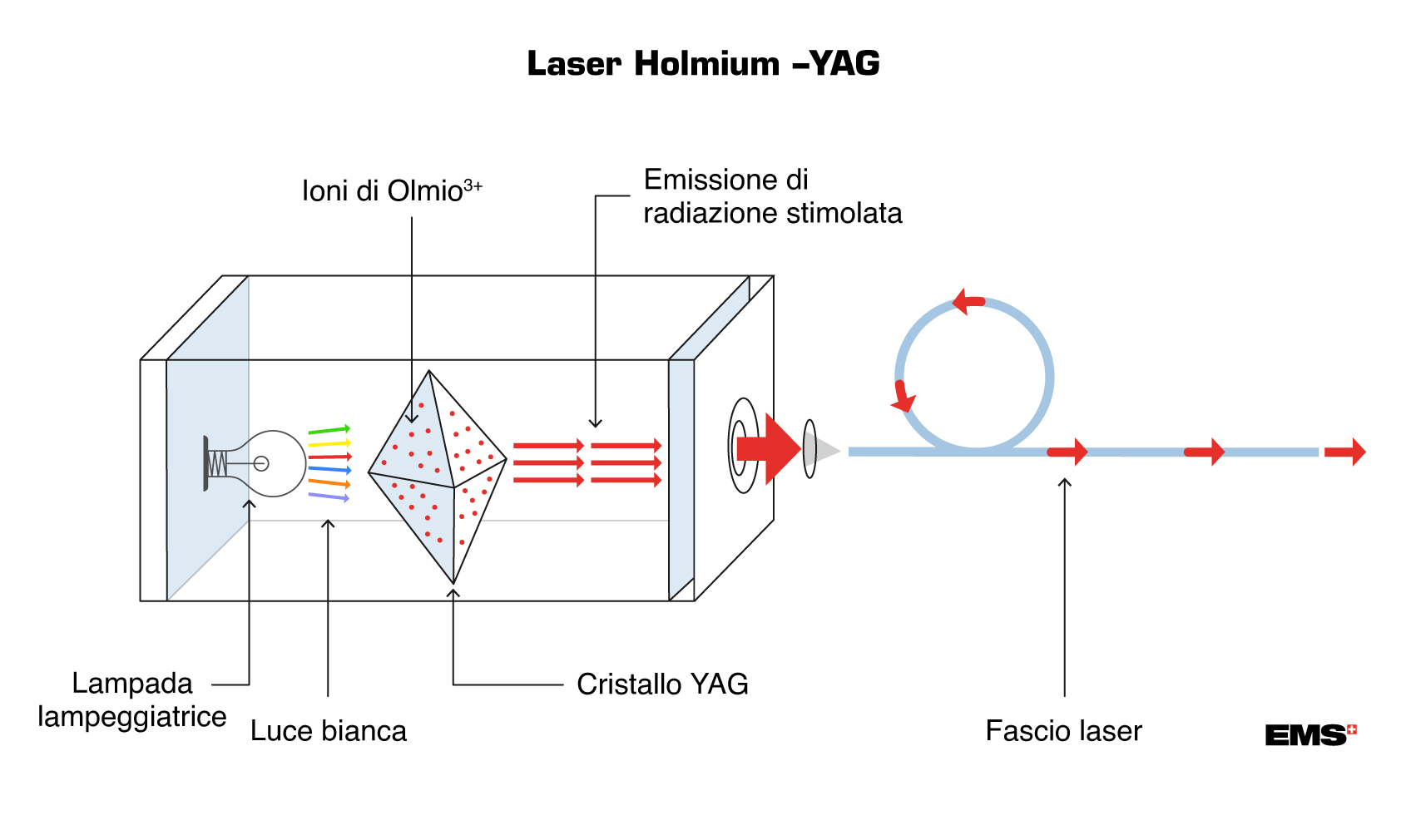

The Holmium:YAG (Ho:YAG) laser is a highly comprehensive tool for endourology, using the doping element holmium as an active medium in a yttrium-aluminium-garnet (YAG) crystal. It is a solid-state, pulsed laser designed for emitting light at 2100 nm, which is invisible to the human eye and is in the near-infrared region of the electromagnetic spectrum. Considering that the holmium wavelength can be transmitted down optical fibers, the Ho:YAG laser has become a multi-purpose tool in endoscopic urology. It provides tissue cutting and coagulative hemostasis.

Learn more about the basics of laser technology in the field of urology

The Ho:YAG laser has high water absorption, and, given that water constitutes the majority of tissue, a substantial part of holmium energy is superficially absorbed. As a result, only superficial cutting or ablating can be performed with the device.

ho:yag



Holmium:YAG - the Swiss Army Knife of lasers

Ho:YAG technology explained

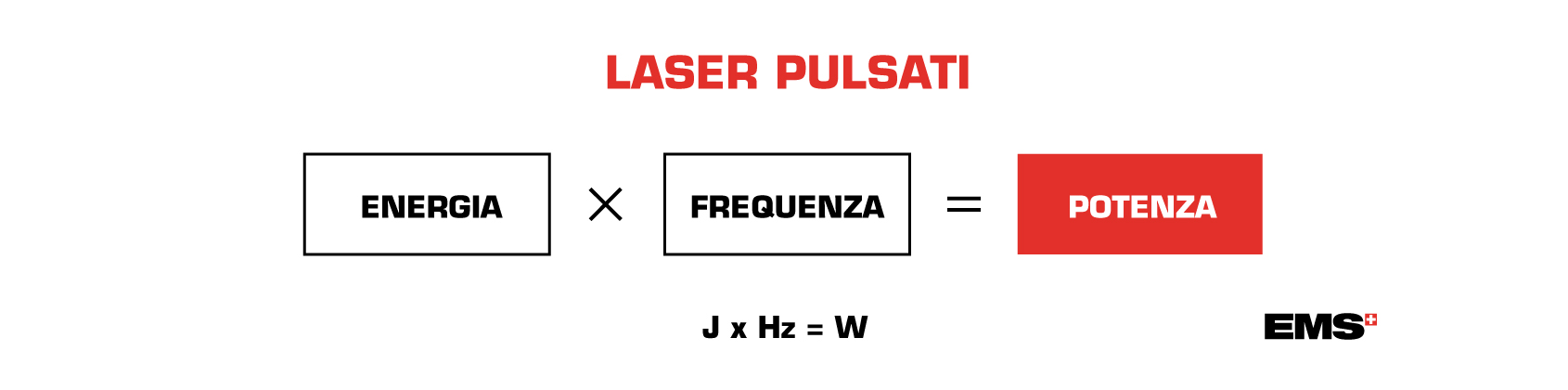

Ho:YAG lasers are pulsed lasers. That means that power (measured in Watts) is a function of the energy (measured in Joules) emitted by the laser times the frequency (measured in Hertz) used during the procedure. Finding the right settings of energy and frequency is therefore critical.

pulsed laser



The Swiss LaserClast® is offering short and long pulse modes for lithotripsy. In long pulse mode, the energy is delivered over a longer time so that the peak pulse power is reduced compared to the short pulse mode. The Swiss LaserClast® can deliver pulse lengths up to 1500 µsec.

Quali sono i vantaggi della modalità a impulsi lunghi?

  • Migliore controllo della frantumazione grazie a una minore migrazione dei calcoli.
  • Ridotta degradazione della punta in fibra (burnback)
  • Taglio/ablazione di tessuti, emostasi e coagulazione efficienti.

“Use the technology in a good way. Don't use all the possibilities of the technology. Be modest. Know exactly what you can do with the technology.” - Prof. O. Traxer

Una differenza fondamentale fra i laser Ho:YAG disponibili sul mercato riguarda la potenza d’uscita. Esistono laser a bassa potenza e laser ad alta potenza, la cui importanza per i risultati clinici è attualmente oggetto di studio. Ciò che distingue i vari dispositivi è la quantità di luce trasferita alla fibra laser. Queste sorgenti luminose emettono la stessa energia, ma nei laser ad alta potenza sono utilizzate in parallelo per generare maggiore potenza in uscita.

EMS Urology offre una gamma di sistemi a bassa potenza rivolti ai medici per i massimi benefici, in particolare nell’ureteroscopia flessibile.



“There is no clinical benefit (of a high power over a low power laser) in terms of clinical data for flexible ureteroscopy”  - Prof.  O. Traxer*



Immagine
surgery with laser

Clinical applications of Ho:YAG laser technology in Urology

Decades of successful therapeutic use in urology have established lasers as an extremely valuable tool for open and endoscopic urological surgery including ablation, vaporization, incision, excision and coagulation of soft tissues. Innovative features and solutions are further expanding their clinical applications.

Some of the clinical applications of the Ho:YAG laser include:

  • Endoscopic fragmentation of urinary (urethral, ureteral, bladder and renal) calculi
  • Ablation and resection of bladder tumors, urethral tumors and ureteral tumors
  • Urethral and ureteral strictures
  • Condylomas
  • Lesions of external genitalia
  • Bladder neck incision (BNI)

Stone management using Ho:YAG lasers

Flexible ureteroscopy

furs

Learn more about fURS!

Percutaneous nephrolithotomy

Percutaneous nephrolithotomy is a mini-invasive procedure for removing medium (≥2 cm) to larger size renal calculi (kidney stones) from the patient’s urinary tract by means of a nephroscope passed into the kidney through a percutaneous track created in the patient’s lower flank or abdomen.

Learn more about PCNL!



Additional information on indications for using Holmium:YAG lasers

Transitional cell carcinoma

Lasers are a safe and effective option for treating these comparatively rare but distressing tumors located in the renal pelvis and ureter. The depth of penetration of the Ho:YAG laser is equal to 0.4 mm, which makes this a safe choice for small ureteral tumors.

Ureteropelvic junction (UPJ) obstruction

UPJ obstruction can also safely be handled with endopyelotomy using the Ho:YAG laser. Furthermore, the holmium laser is particularly effective in the minimally invasive management of urethrovesical anastomotic strictures after renal transplant and ureterointestinal anastomotic strictures after urinary diversion.



Discover EMS cutting-edge laser devices for stone management

References

  • Impact of pulse duration on HO:YAG laser lithotripsy: Fragmentation and dusting performance M. J. Bader Department of Urology, Kreisklinik Ebersberg Gemeinnützige GmbH, Ebersberg, Germany T. Pongratz · R. Sroka Laser Research Laboratory (LFL) in LIFE-Centre, Hospital of University Munich, Feodor-Lynen-Str. 19, 81377 Munich, Germany W. Khoder · C. G. Stief Department of Urology, Hospital of University Munich, Hanover, Germany
  • Traxer, Olivier, and Etienne Xavier Keller. “Thulium fiber laser: the new player for kidney stone treatment? A comparison with Holmium:YAG laser.” World journal of urology vol. 38,8 (2020): 1883-1894. doi:10.1007/s00345-019-02654-5
  • Enikeev, D. , Shariat, S. , Taratkin, M. & Glybochko, P. (2020). The changing role of lasers in urologic surgery. Current Opinion in Urology, 30 (1), 24-29. doi: 10.1097/MOU.0000000000000695.
  • Zarrabi A, Gross AJ. The evolution of lasers in urology. Ther Adv Urol. 2011;3(2):81-89. doi:10.1177/1756287211400494
  • Sandhu AS, Srivastava A, Madhusoodanan P, et al. Holmium : YAG Laser for Intra Corporeal Lithotripsy. Med J Armed Forces India. 2007;63(1):48-51. doi:10.1016/S0377-1237(07)80109-2
  • *Ventimiglia E. et. al. High- and low-power laser lithotripsy achieve similar results: A systematic review and meta-analysis of available clinical series. Journal of Endourology © Mary Ann Liebert, Inc. DOI: 10.1089/end.2020.0090
